The key difference between these two fan types lies in the damper mechanism:
In gravity damper fans, the air pressure created by the fan’s airflow opens the dampers.
In clutch-based fans, a clutch mechanism activates the damper system immediately upon startup, ensuring faster and more reliable operation.
Exhaust fans can be used throughout the year. In winter, they are primarily intended to circulate small volumes of air, helping maintain fresh air without causing significant heat loss. In summer, greenhouse fans must have sufficient capacity to exchange large volumes of air continuously, ensuring optimal ventilation during hot weather.
These fans are typically installed on the end wall of the greenhouse. Air enters the structure through motorized vents and is drawn outward by the exhaust fans, promoting effective airflow and environmental control.
Advantages of Exhaust Fans:
- Helps regulate humidity levels throughout the greenhouse
- Ensures uniform air circulation among the plants
- Promotes even distribution of optimal temperature
- Reduces dust levels and airborne pest and disease threats
- Distributes essential gases evenly across the growing area
- Facilitates continuous air exchange between inside and outside environments
- Supplies sufficient CO₂ for plant photosynthesis
- Creates favorable conditions for pollen movement and pollination
Key Features:

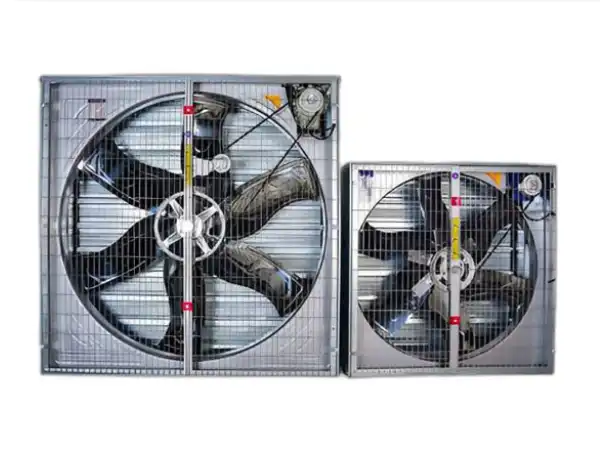

- Fan Body and Housing: 1 mm galvanized steel sheet (Shahrekord production)
- Belt: A91 standard
- Fan Guard: 3 mm and 4 mm galvanized wire mesh
- Fan Blade: 6-blade – 1.25 mm polished stainless steel, Grade 430 & 3-blade – 1 mm polished stainless steel, Grade 430
- Blade Flange: 5 mm galvanized steel
- Fan Damper: 0.8 mm galvanized steel (Shahrekord)
- Fan Belt Tensioner: Die-cast aluminum
- Dual-Speed Motor Pulley (die-cast aluminum): 6-blade: 11.5 cm diameter & 3-blade: 10.5 cm diameter
- Main Pulley: 32 cm diameter, die-cast aluminum
- Hub: Die-cast aluminum
- Bearing: Wide 622313 (foreign brand)
- Clutch (Centrifugal Release System): Automatic damper opening made from fiber-reinforced polyamide
- Electric Motor: Guanglu (China) or Electrogen (Iran) 1.5 HP output power
To place an order or receive expert consultation, please complete the order form or contact our specialists.
